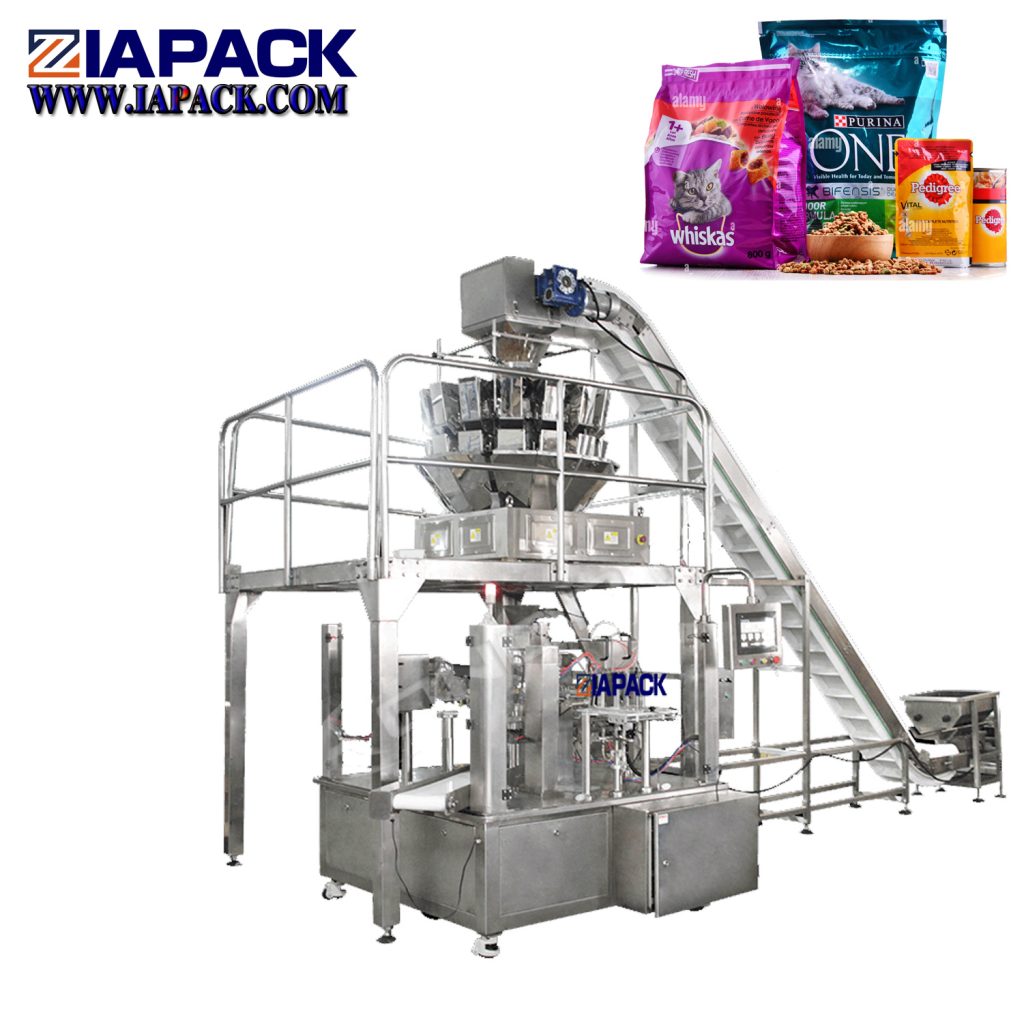

ZL8-230 Rotary bag taking filling sealing machine for doypacker
Función y características
- Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
- Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
- Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
- Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
- The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
- It match with the glass safety door. that it could protect the safety of operators. At the same time, it could prevent dust.
- .Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
- Use the plastic bearing, don’t need put on oil, less pollution.
- Use no oil vacuum pump, avoid polluting the environment in the production.
- 包装材料损耗低,这机器is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
- Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
- With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
Parámetros técnicos
| Modelo | ZL8-230 |
| Posición de trabajo | Ocho puestos de trabajo |
| Pouch material | Laminated film/PE film |
| Patrón de la bolsa | Doy packer with zipper |
| Tamaño de la bolsa | W:140-210mm L:150-300mm |
| Velocidad | 20-50pouches/min（The speed depends on the product status and filling ） |
| Peso | 1400KGS |
| voltaje | 380V 3phase 50HZ |
| Poder total | 4KW |
| Comprimir aire | 0.6m3/min(supply by buyer) |
